Aeromotive fuel filters feature an advanced flow-through design to allow for steady fuel flow with less than a .15 psi pressure drop. Designed for carbureted or fuel injected engines from 200 to 3,000 hp, they're made from 6061-T651 aluminum alloy with the impeccable machining and finish you've come to expect from all Aeromotive components.

- High-flow, 100-micron stainless steel (coarse) cleanable element.
- Flows 2,000 lb/hr with a pressure drop of less than 1 PSI.
- ORB-10 ports. Fittings available to adapt these filters to AN-10, -08 and -06 line sizes.
- All filter assemblies feature an O-ring for positive sealing in high pressure applications.
- CNC-machined from 6061-T6 aircraft aluminum.
- Bright dip black anodized finish for a corrosion resistant, show car quality appearance.

Fuel Filter Style: Inline

Inlet Quantity: 1

Inlet Size: -10 AN O-ring

Inlet Attachment: Female

Outlet Quantity: 1

Outlet Size: -10 AN O-ring

Outlet Attachment: Female

Filter Element Included: Yes

Smallest Particle Filter: 100 microns

Filter Element Material: Stainless Steel Mesh

Filter Housing Material: Billet Aluminum

Filter Housing Finish: Black Anodized

Overall Length (in): 5.500 in

Overall Diameter (in): 2.000 in

Mounting Bracket Included: No

Fittings Included: No

Clamps Included: No

Maximum Fuel Pressure (psi): 250

In Store Pickup: Anaheim, CA, USA

Return Policy

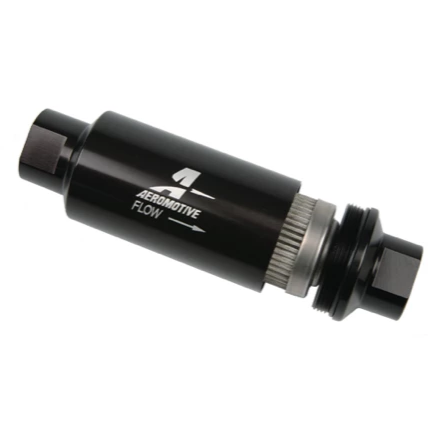

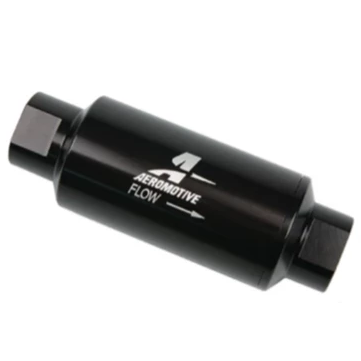

Aeromotive 100 Micron, ORB-10 Black Fuel Filter
