Holley EFI 6.86" Pro Dash

Part #: 553-112

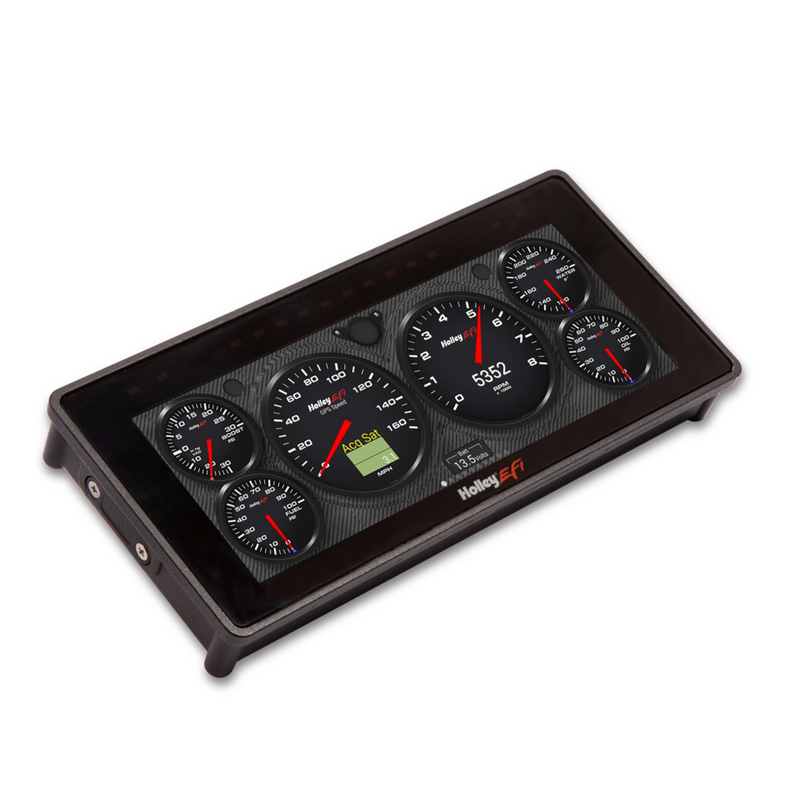

Monitor the power of your Holley EFI system at a glance. Holley's new 6.86" Pro Dash delivers over 200 monitoring channels of reliable real-time data in a more compact, full HD package suitable for nearly any motorsports application. Be assured that the Holley EFI 6.86" Pro Dash will deliver the vitals you need. The 6.86" Pro Dash is completely customizable for use in a variety of motorsports applications. It features a 6.86" 1280x480 resolution low glare, high brightness, high contrast, full-color capacitive touch screen for easy viewing even in the sun and a plug and play connection to all Holley EFI systems, as well as a weatherproof aluminum housing featuring flexible mounting options. Holley EFI 6.86" Pro Dash includes everything needed for installation. The Holley EFI 6.86" Pro Dash also features a plethora of inputs and outputs for expanded functionality of your Holley EFI installation. The included 34pin connector has 13 multi-configurable inputs for most Holley EFI sensors such as pressure and temperature. Not using Holley EFI sensors? We still have you covered - these inputs are configurable, allowing you to utilize different sensor scaling calibrations. The Pro Dash also features two dedicated speed inputs for RPM, Driveshaft speed, or any other Hall effect speed input. Need more outputs? The Pro Dash contains 4 ground switched outputs, that can be utilized with the switch panel feature to quickly turn on any of your auxiliary accessories, such as a master nitrous switch or an electric water pump. We have also integrated a 10-LED Programmable shift light into the bezel of the dash and added 4 optional LEDs that can be programmed for virtually anything, such as fuel pressure, oil pressure warning or target boost indicators - the options are almost endless.

Features:

Plug-and-play Display support for Dominator, HP, Terminator X & Sniper EFI (Not compatible with Sniper 2)
Integrated a 10-LED Programmable shiftlight w/ 4-LED warning indicators for other sensor inputs
Capable of monitoring up to 238 real-time values such as RPM/TPS/Boost
10 default background skins pre-loaded with unlimited options for importing custom layouts
Quickly swipe between multiple active screens (tune, warm-up, race, drive, etc.)
Virtual switch panel eliminates the need for external toggle switches
Manual or auto-brightness features for easy viewing day or night
Built-in GPS with odometer function (Antenna included)
On-screen datalog playback features allows you to review vital run information
Expandable storage via USB
No stylus required; utilizes capacitive touch just like your smart phone
User definable channel alarms and warnings

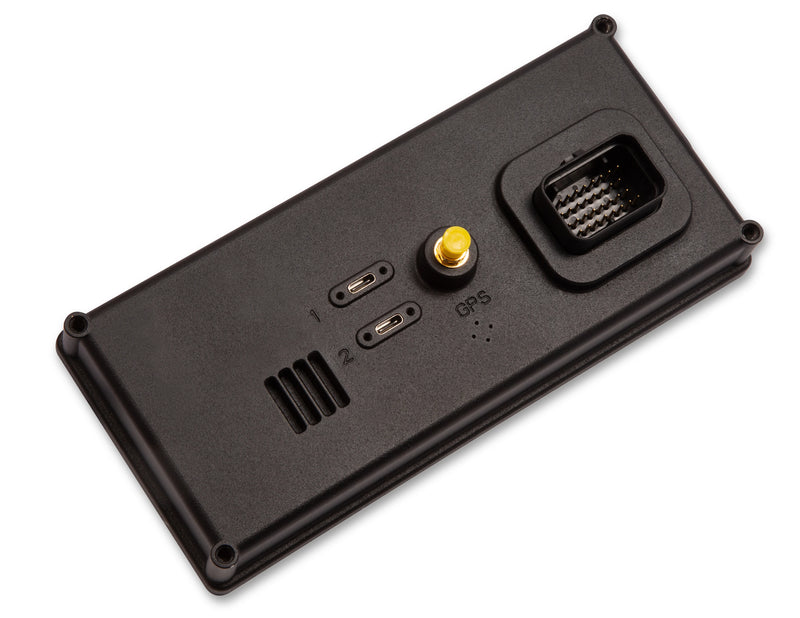

4x 10-32 mounting holes for surface or flush mounting, with high quality hardware included

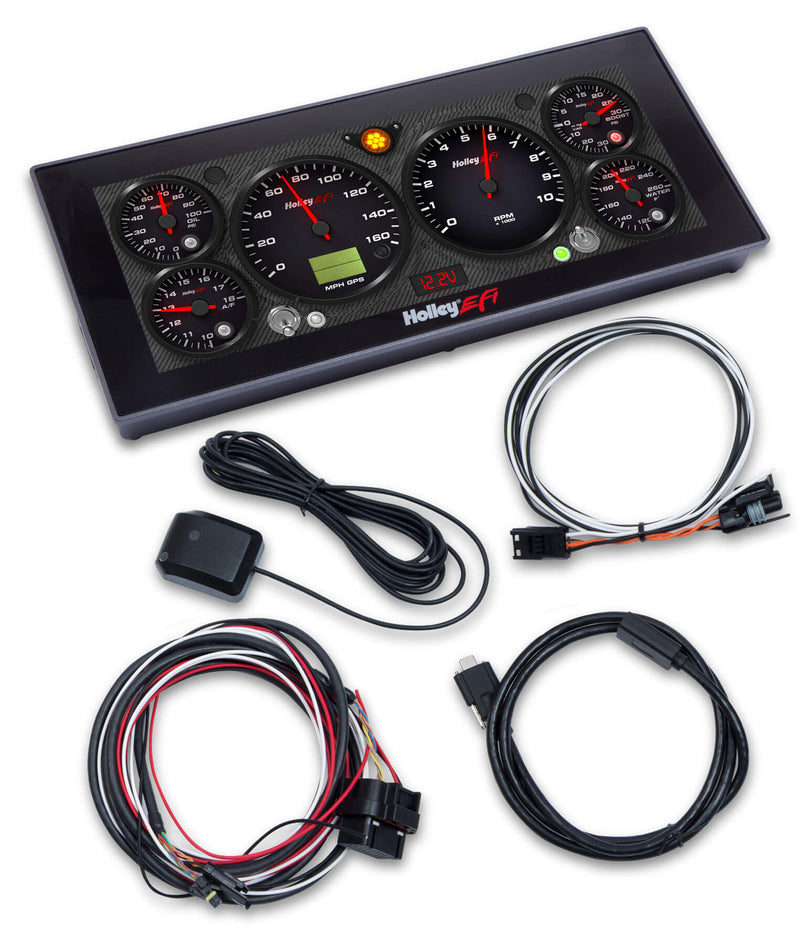

Includes everything needed for installation
USB Keyboard and Mouse functionality makes it quick and easy to setup new layouts
Includes 34 Pin Wiring Harness contains Power, Ground and CANbus connections
Input and output functionality for 13 multi-configurable inputs, and 4 ground switched outputs
User defined alarms for any input
Upgradable with future software enhancements
Viewing area is 6.86" on the diagonal
Dash weight - 1.2 Lbs
Real-time ECU tuning - HP/Dominator ECUs only
