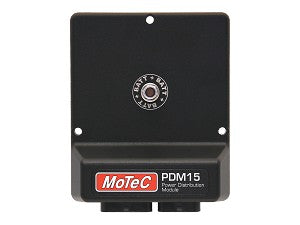

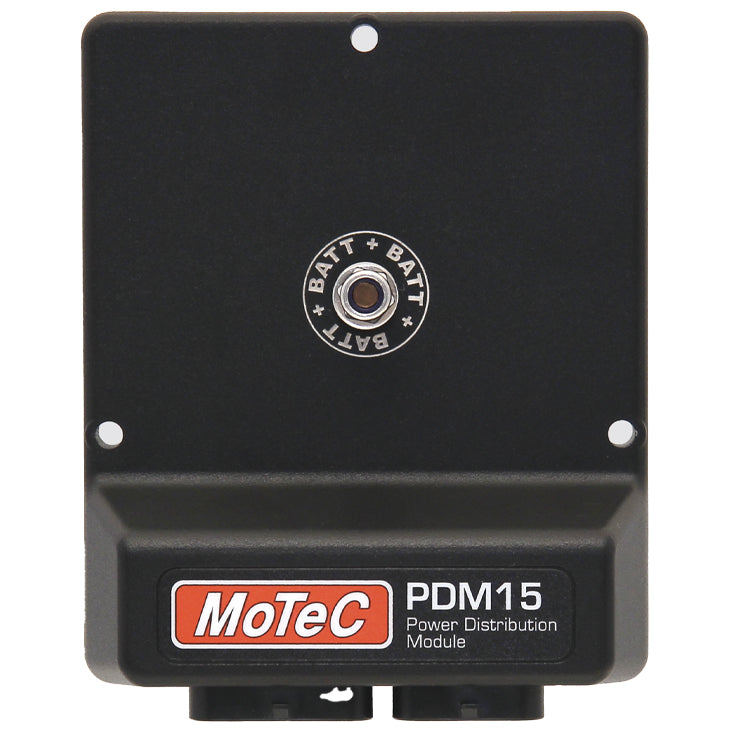

MoTeC PDM15 14104

$2,080.00

Quantity

  • Product Description
      *PLEASE READ*
      MoTec has placed additional tariff fees for certain products. The PDM15 has a current tariff of $125. This fee plus an additional $30 shipping insurance will be reflected as the 'Handling Fee' upon checkout.
      -

      Part #: 14104 (M PDM15)

      OVERVIEW

      MoTeC's 15 output Power Distribution Module is designed to provide electronically switched power to the various electrical systems in the vehicle such as motors, lights, solenoids, and electronic devices such as ECUs and data acquisition systems.

      The module replaces conventional relays, fuses and circuit breakers to simplify wiring and switch requirements, while increasing reliability.

      FEATURES

      - Each output is over-current, short circuit and thermal overload protected

      - Outputs programmable in 1 A steps and controllable via a combination of switch inputs, CAN messages and logic functions

      - Performs up to 200 logic operations and functions that can be used to selectively turn off systems

      - Provides full diagnostic information via CAN



      SPECIFICATIONS

       Inputs

      - 16x switch inputs: range 0 to 51 V, resolution 0.2 V
      Outputs

      - 8 x 20 A outputs: 20 A continuous, 115 A transient (typical)

      - 7 x 8 A outputs: 8 A continuous, 60 A transient (typical)
      Communications

      - 1 x CAN
      Operating Voltage

      - 30 V max
      Physical

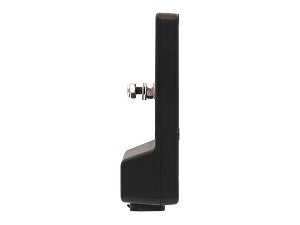

      - 1 x 34 and 1 x 26 pin waterproof connectors, 1 x M6 stud

      - Case size 107.5 x 127.5 x 38.7 mm

      - Weight 260 grams



      For more specs and information visit MoTeC direct: PDM15
