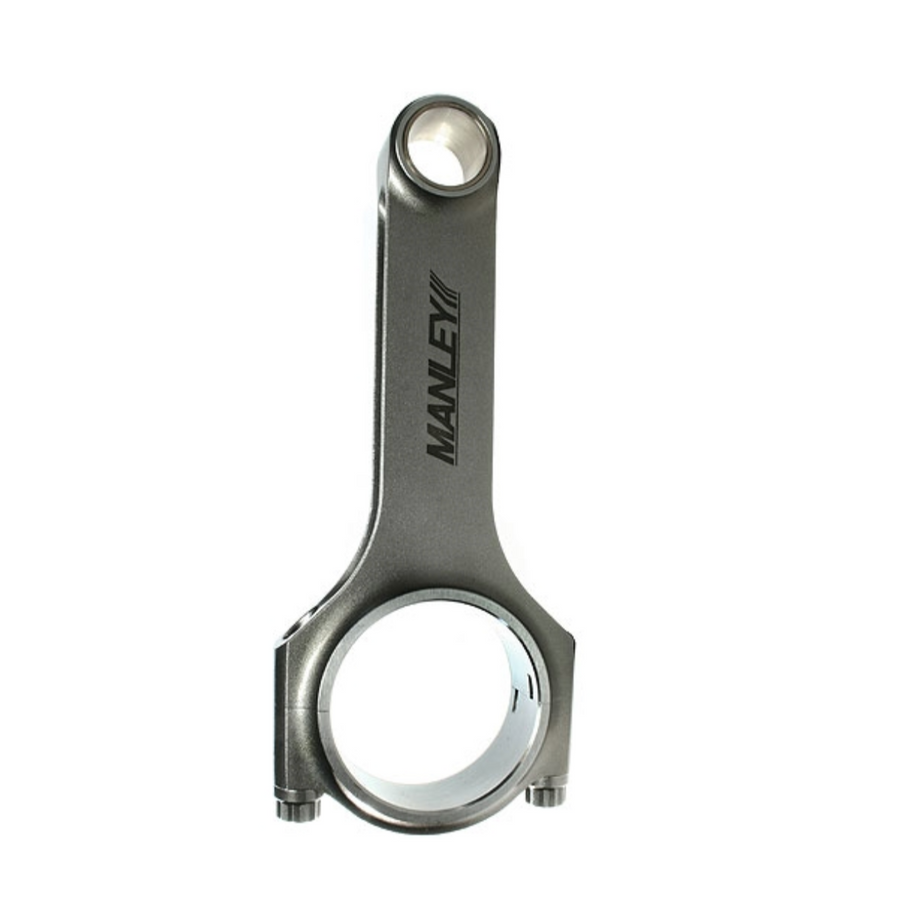

Manley Steel H-Beam Connecting Rods 14066-8


  • Product Description

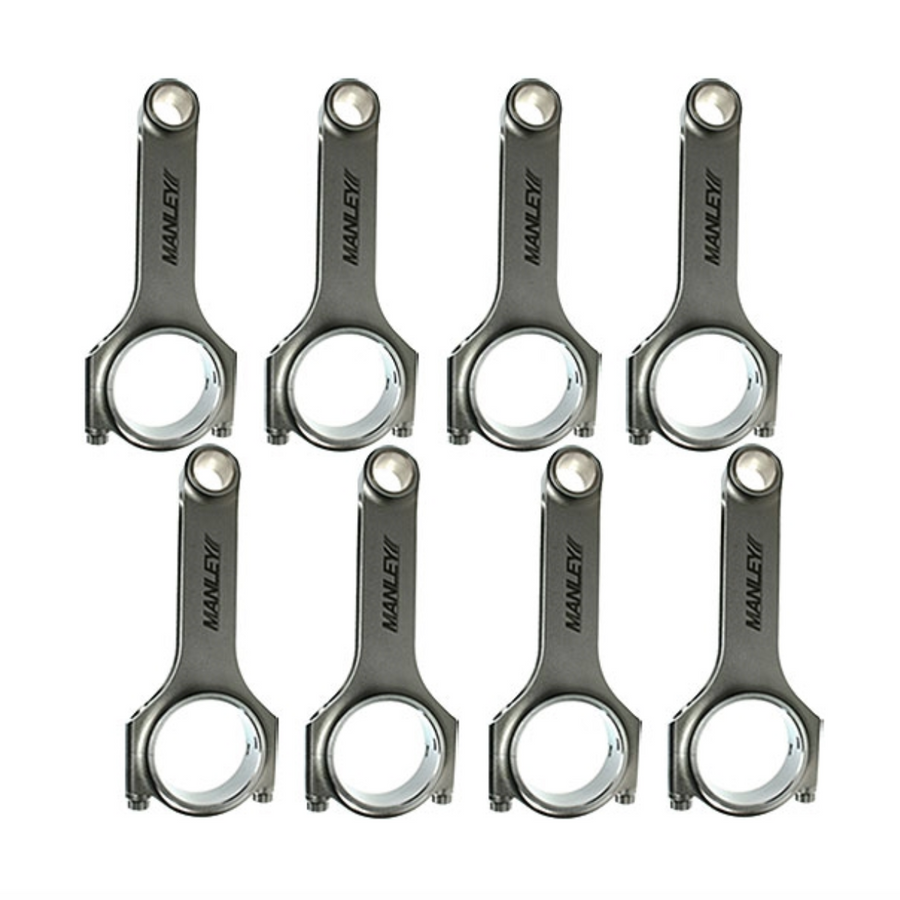

      Manley steel H-beam connecting rods are made from forged 4340 steel alloy. They're packed full of performance features, such as a compact uniform-grain structure for ultimate strength, full machining, stress relieving, and magnafluxing. The wrist pin and big end bores are honed to a +/-.0002 in. tolerance, and the wrist pins get a bronze alloy bushing. These units include cap screw ARP 8740 alloy rod bolts, and each rod set is weight-matched to within 2 grams.

      Connecting Rod Length Center to Center (in): 6.535 in.

      Connecting Rod Beam Style: H-beam

      Connecting Rod Material: Forged 4340 steel

      Connecting Rod Finish: Shot-peened

      Wrist Pin Style: Floating

      Rod Journal Diameter (in): 2.200 in.

      Big End Bore Diameter (in): 2.3250 in.

      Pin End Bore Diameter: 0.990 in.

      Clearanced for Stroker: No

      Cap Retention Style: Cap screw

      Connecting Rod Bolt Brand: ARP

      Connecting Rod Bolt Diameter: 7/16 in.

      Connecting Rod Bolt Material: 8740 chromoly steel

      Fastener Tensile Strength (psi): 160,000 psi

      Connecting Rod Bolt Head Style: 12-point

      Approximate Connecting Rod Weight (g): 823

      Advertised Horsepower Rating: 900 hp

      Advertised RPM Rating: 8,000 rpm

      Weight Matched Set: Yes

      Magnafluxed: Yes
