MoTeC C1212 12" COLOR DISPLAY W/USB

$5,280.00

Logging Options
Display Option 1
Display Option 2
Quantity
  • Product Description

      *PLEASE READ*
      Shipping costs are NOT reflected. We REQUIRE shipping insurance due to cost of product. These costs vary depending on customer's selections and location. Once your purchase is complete, we will reach out to you with shipping costs and link to purchase said costs.
      If you would like a shipping quote beforehand, please reach out to us online@redlineperformance.com
      -

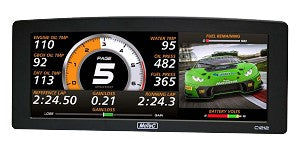

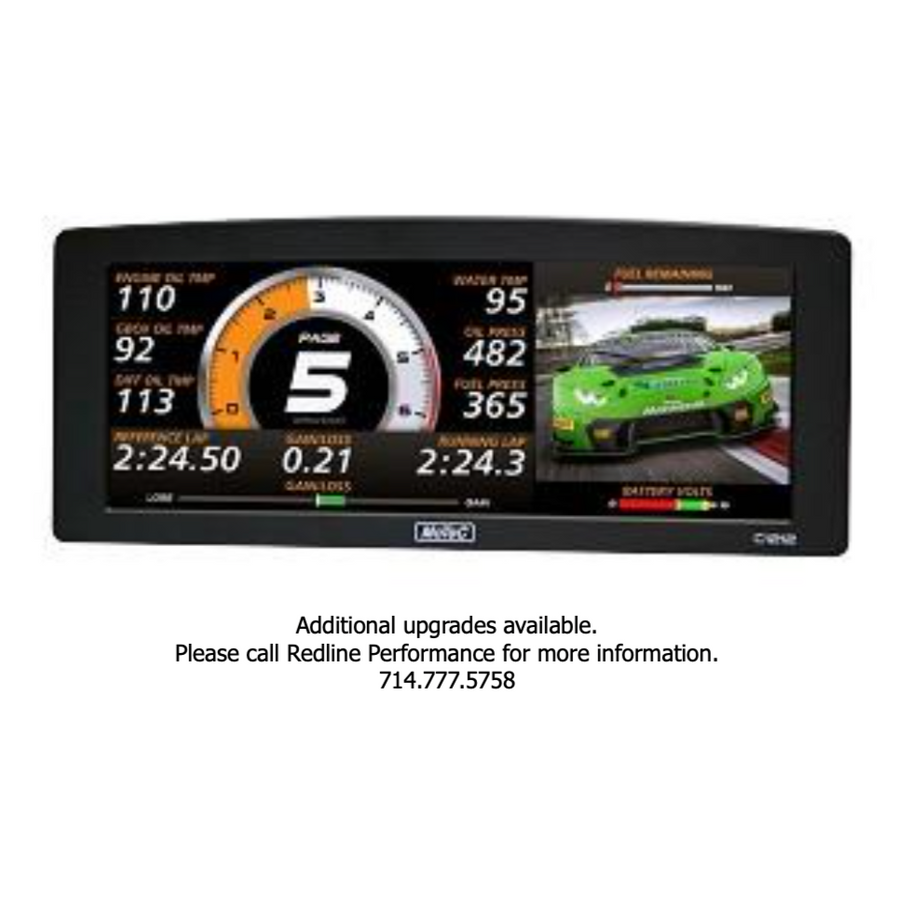

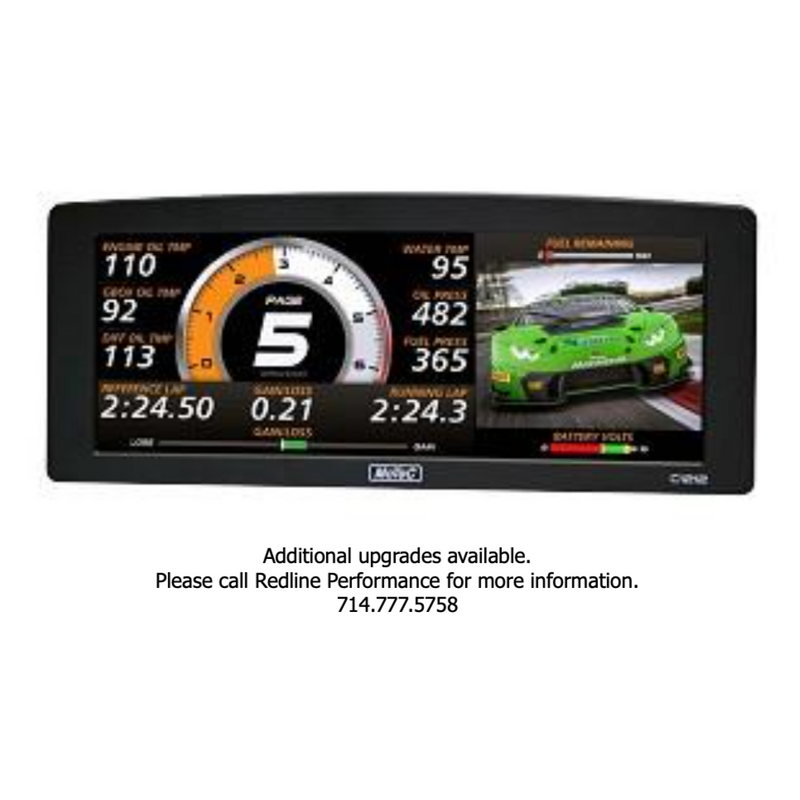

      The C1212 is the latest model in MoTeC's range of Color Displays and Color Display Loggers, featuring an impressively generous, high resolution, full color screen. Stylishly designed with powerful functionality, the C1212 provides a sophisticated display plus data logging, auxiliary control and video camera input and display, all in one streamlined device.
      Measuring an incredible 12 inches diagonally, the ultra-bright screen is vibrant and anti-reflective, making it easy to view in direct sunlight. Numerous selectable layouts are supplied with configurable channels, labels and color schemes. Or, for the flexibility to treat your screen as a blank canvas and design your own layout with unique graphics, sponsor logos, custom icons and gauges, opt for the new Display Creator upgrade. All C1212 displays include (reverse camera) composite video input functionality and USB Logging (upgrade).
      The C1212 is also pin for pin compatible with C125 and C127 color displays!
      BASIC SPECIFICATIONS

      Display:
      Screen: Color TFT LCD, anti-reflective
      Selectable fixed layouts with channel and label configurability
      48 user-defined, scrollable message lines with programmable overrides
      3 programmable 'pages', for example Practice, Warm-Up, Race

      Communications:
      2 x Configurable CAN buses with individually programmable CAN bus speeds
      RS232: 2 x RS232 ports
      One with Transmit and Receive
      One with Receive only

      Physical:
      IP68 Rated
      1 x 34 pin waterproof connector

      Logging (optional - requires logging upgrade):
      Level 1 Upgrade - 120 MB logging memory
      Level 2 Upgrade - USB Logging with IP67 USB Stick
      Logging rates up to 500 samples per second
      Logging rates up to 500 samples per second
      Includes i2 Standard data analysis software (i2 Pro available as an upgrade)

      Inputs (optional - requires I/O upgrade):
      6 x analogue voltage inputs
      2 x analogue temperature inputs
      2 x digital inputs
      3 x speed inputs

      Outputs (optional - requires I/O upgrade):
      4 x low side outputs
      PWM or switched operation

      Internal Sensors:
      3-axis G sensor
      Dash temperature sensor
      Sensor supply voltage
      Battery voltage

      Expanders:
      Compatible with MoTeC E888 and E816 Expanders, providing expanded functionality.
