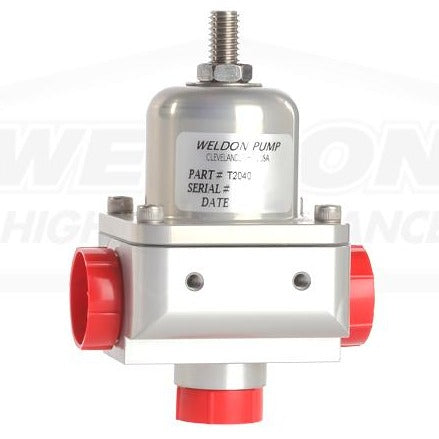

Weldon T2040 Series Bypass Regulators


  • Product Description

      - Weldon's T2040 Series Regulators with Teflon diaphragm are compatible with all fuels and are designed for use in fuel-injected applications.
      - Available in two options: The T2040-120 is for 30 to 110 PSI base pressures and the T2040-200 is for 90 to 200 PSI base applications.
      - .281" bypass orifice
      - Teflon diaphragm
      - Flows up to 6 GPM
      - 1/8" NPT Gauge Port
      - 1/8" NPT manifold pressure reference port
      - Fuel pressure increases on a 1:1 ratio with boost
      - Two -10 pressure ports / -8 return port
      - Billet Aircraft Aluminum with MIL-SPEC clear anodizing
      - For use with all Weldon pumps as well as pumps from other manufacturers
